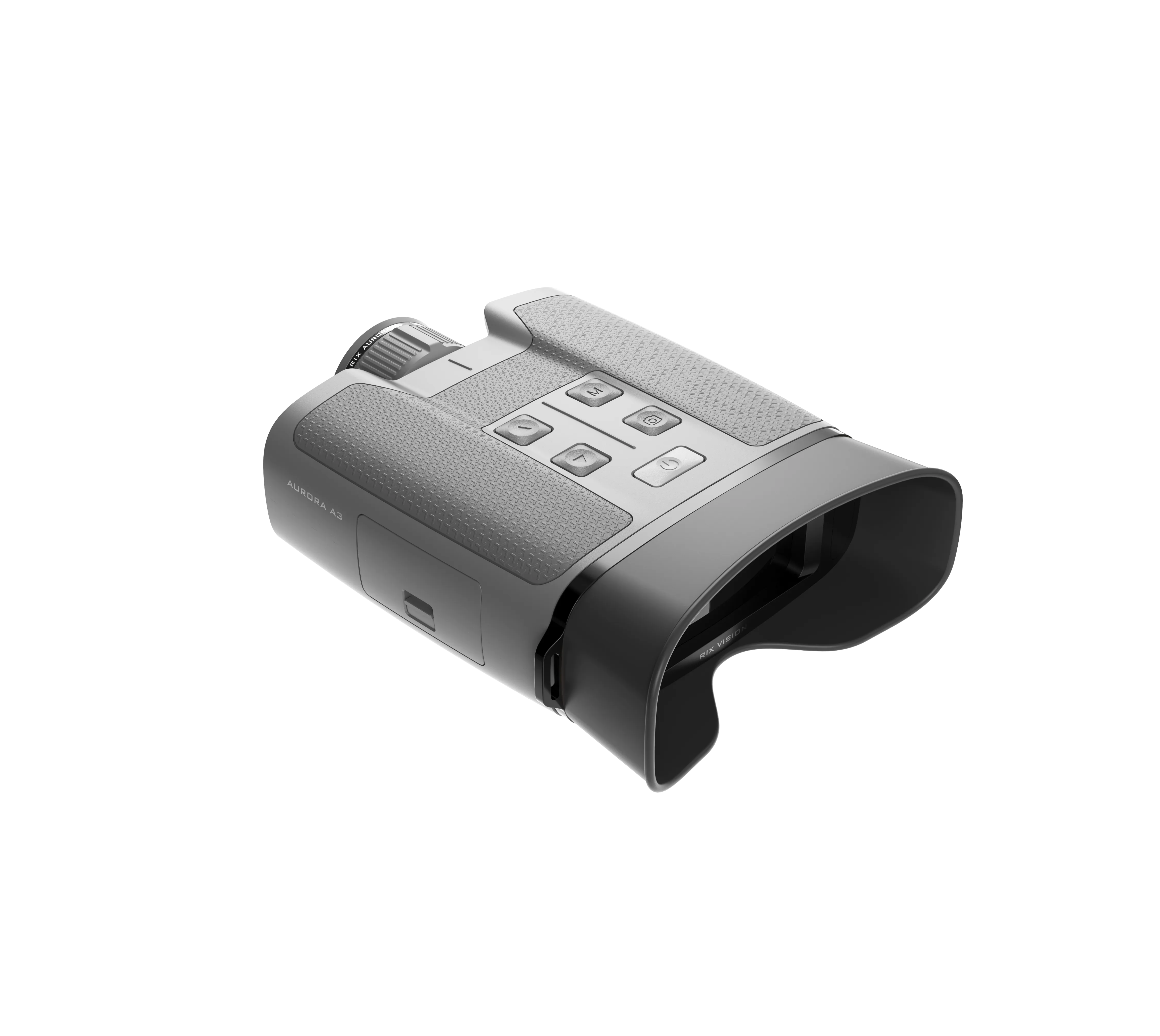

RIX OPTICS Aurora A3 & A3R Large-Screen Thermal Binocular
The handheld large-screen thermal imager AURORA A3, and AURORA A3R, are designed for maximum observational comfort while providing amazing thermal imagery. It is feature packed with multiple palettes, digital zoom and many other features Enjoy 32GB of on board video and image recording.
High-quality image, equipped with high-end detectors and 35mm F1.0 infrared lens, provides a high-definition observation experience. Using a 2.69-inch large-size OLED display screen in combination with 2.5x eyepieces for binocular observation, avoiding dizziness caused by long-term use of the existing dual-screen products in the market, thus greatly improving observation comfort. Ultra-long battery life, built-in battery plus 8 replaceable AA batteries enabling continuous operation as long as 24 hours.
-
Package Includes:
- AURORA series thermal imaging binocular
- Portable bag
- Power adapter
- Backband
- Lens cleaning cloth
- User manual
Features
- Designed for mainstream hunting and search & rescue users.
- Equipped with high-end 384x288 resolution, 12 µm pixel pitch, 50Hz thermal detectors.
- The 2.69-inch 1.5x large size OLED display screen provides observational comfort.
- Ultra-long operating time up to 24 hours.
- The AURORA A3R has a built-in laser ranging module which can measure range of up to 1200 meters, achieving high-precision measurement of ±1 meters.
Specifications
| A3 | A3R | |
| Sensor type | Uncooled VOx | Uncooled VOx |
| Sensor resolution | 384 x 288 | 384 x 288 |
| Sensor pixel pitch | 12 µm | 12 µm |
| Sensor NETD | ≤ 50 mK | ≤ 50 mK |
| Frame Refresh Rate | 50 Hz | 50 Hz |
| Objective Lens | 35 mm | 35 mm |
| F-Number | 1.0 | 1.0 |
| Optical Magnification | 4x - 16x | 4x - 16x |
| Digital Zoom | 1x / 2x / 3x / 4x | 1x / 2x / 3x / 4x |
| Detection Range | 1800 m | 1800 m |
| Exit Pupil Distance | 1.18 in | 1.18 in |
| Exit Pupil Diameter | 3.15 in | 3.15 in |
| Diopter | Unadjustable | Unadjustable |
| Display Type | OLED 768x576 | OLED 768x576 |
| Display Screen Size | 2.69 in | 2.69" |
| Battery Type | Built-in Li-ion battery pack (3800mAh/DC3.7V) | Built-in Li-ion battery pack (3800mAh/DC3.7V) |
| External Battery | AA batteries x8 | AA batteries x8 |
| Service Voltage | 3V~4.2V | 3V~4.2V |
| External Voltage | 5V (Type C USB) | 5V (Type C USB) |
| Max. Battery Life | 24 hrs @ 25°C | 20 hrs @ 25°C |
| Laser Rangefinder | No | Yes, Class 1 |
| Laser Wavelength | NA | 900-908nm, safe for human eye |
| Laser Range | NA | 1312 yds |
| Laser Accuracy | NA | /- 1 yd |
| Memory Capacity | 32 GB | 32 GB |
| Operating Temp | -4°F ~ 122°F | -4°F ~ 122°F |
| Weight | 38.8 oz | 40.6 oz |
| Dimensions | 7.9" x 5.9" x 2.4" | 7.9" x 5.9" x 2.4" |
| Warranty | 5 yrs | 5 yrs |
